q5 integrated stove

integrated stove

son-in-law, money and the entirely-new marssenger q5 integrated cooker are the top-three favorites in 2016.

view video

g2 continuous

standard in design

it comes from marssenger family with the highest face score. with the g2 continuous standard in design aesthetics, the head arc line is designed. lines of q5 are soft and handsome at the same time.

entirely-new clamshell design

within 8.7cm small space, 2 sets of lighting systems and one set of rotating structure are integrated. the space utilization rate is higher. the height below the clamshell is increased by 4-6cm compared with the ordinary structure, it can adapt to different high saucepans.

double-direction air

fan system

with more powerful centrifugal turbine and combining with the fully-enclosed metal air-guiding box, the impeller diameter and air-input are more than 40% higher than those of the ordinary extractor hood.

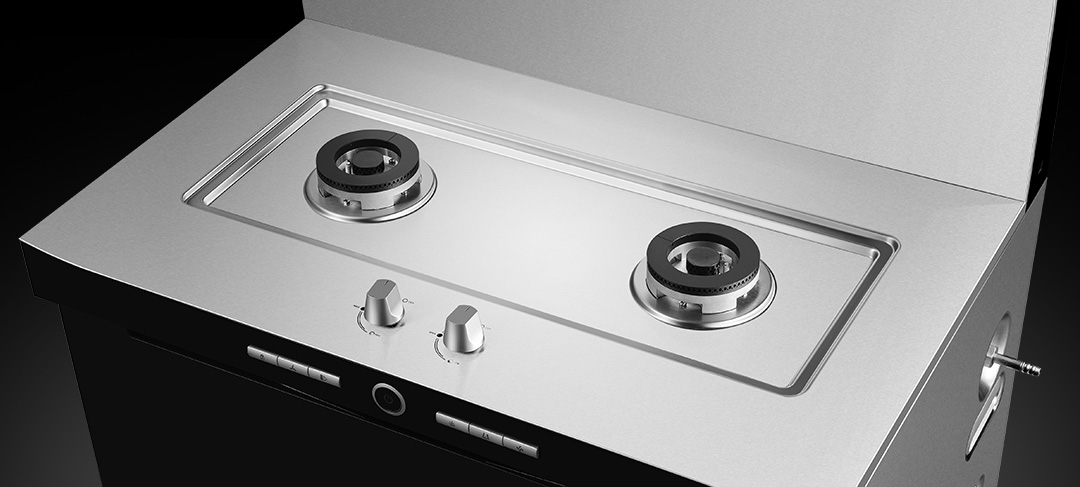

cooker performance

high-efficiency combustion system

4.2kw ultra-strong thermal power grade 1 energy-efficiency.

marssenger q5 takes the entirely-new researched and developed combustion system, the air can be mixed uni

formly, combustion is more complete; the fire cover is provided with flame stabilizing hole, the thermal power is fast

and stable.

flame stabilization design

inner ring powerful fire

double air-mixing chambers

five-cavity vertical torching

secondary air supplement

separable pull-out basket

while washing bowls, the pull-out basket is taken out and placed near the water sink. after washing bowls, place all of the blows into the basket. it only bends once to place the bowls.

for more details of q5, please click here

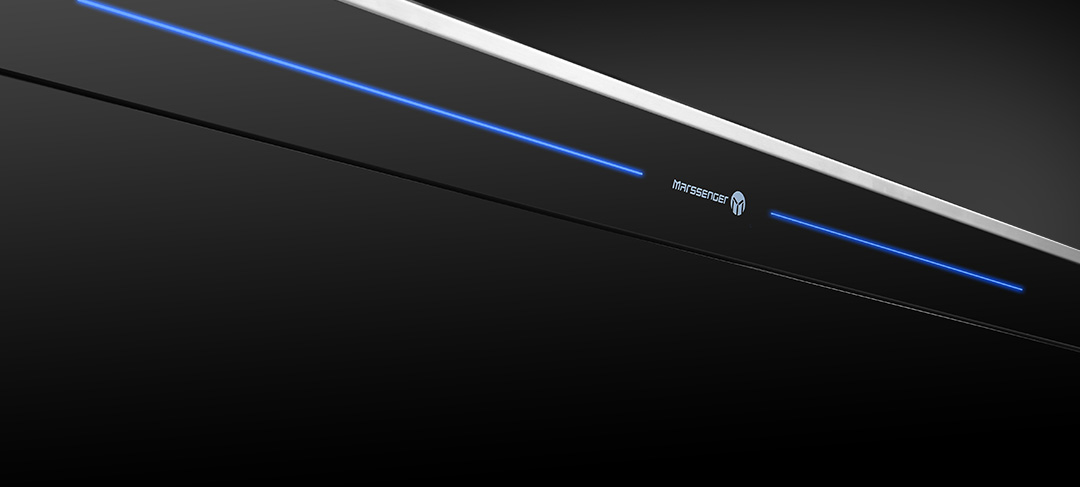

led lighting and atmosphere light design

with led diffusion atmosphere light, the light is softer and does not offend the eyes.

led lighting and atmosphere light design

with led diffusion atmosphere light, the light is softer and does not offend the eyes.

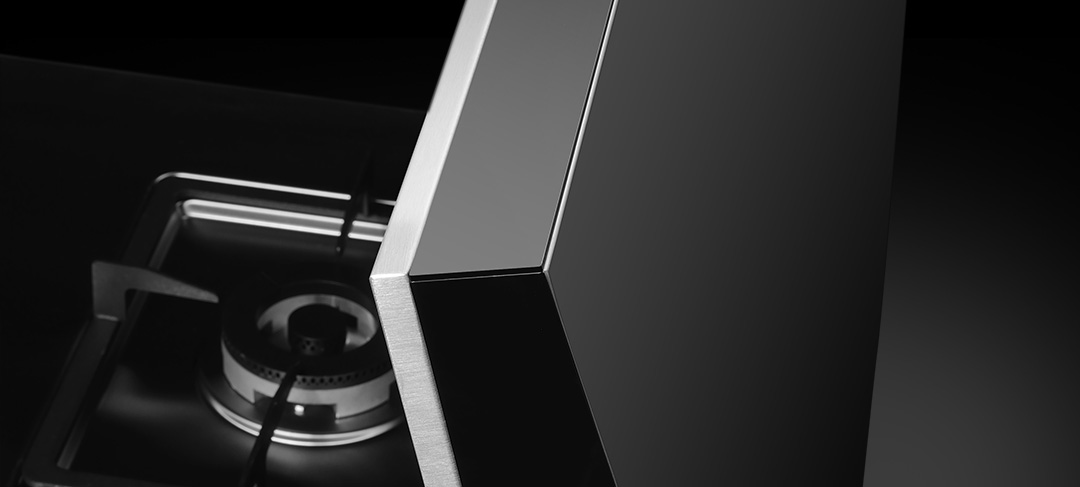

head ultra-narrow frame

with the latest digital control and robot welding technology, the stainless steel frame at head of q5 is only 0.7cm wide. with strong manufacturing capacity, more perfect product can be presented.
cnc machined glass

glass components of q5 are manufactured at cnc center. the glass edge is soft, hand feel is more fine.

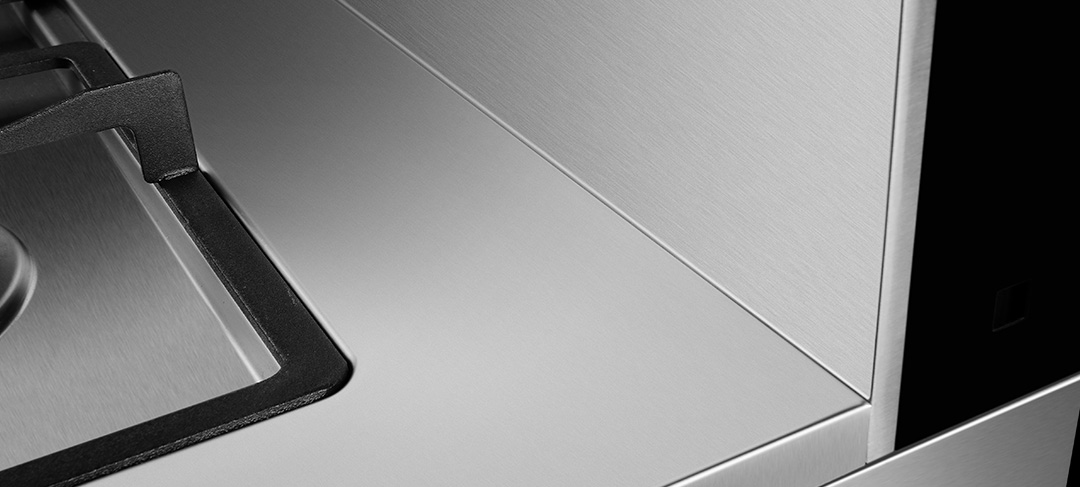

fully-laminated and adhesive-sealing technology

the clamshell and rotating shaft take the fully-laminated and adhesive-sealing technology. the adhesive-sealing technology is cleaner, can achieve better appearance. there is no joint. in addition, it can effectively avoid that the exposed adhesive falls off because of external corrosion.

product parameters

fuel gas cooker	fuel gas category	rated pressure	rated thermal flow
	lpg	2800	left hole: 4.2 right hole: 4.2
	natural gas	2000	left hole: 4.2 right hole: 4.2
	artificial coal gas	1000	left hole: 4.2 right hole: 4.2
extractor hood	power supply voltage	ac 220	rated input power of the motor	280
	frequency	50	lighting power	8
	air pressure	≥300	air quantity	18±1
disinfecting cabinet	drying time	60	input power of the heating pipe	500
	drying temperature	≤60	volume of disinfecting cabinet	57（±5%）
	drying method	ozone / uv	concentration of ozone	≥40
	power of lighting tube	15	weight-bearing of dish rack	≤6
	uv wavelength	253.7	input power of disinfecting cabine	515
power	rated input power	803
available colors	black

mounting instructions

the entire cooker shall fit the overall dimensions of the kitchen cabinet (determined based on the actual product size)

storage cabinet

the left side

smokeless stove

the rgiht side

model/size

850

920

600

adjusted by 0-20°

805
